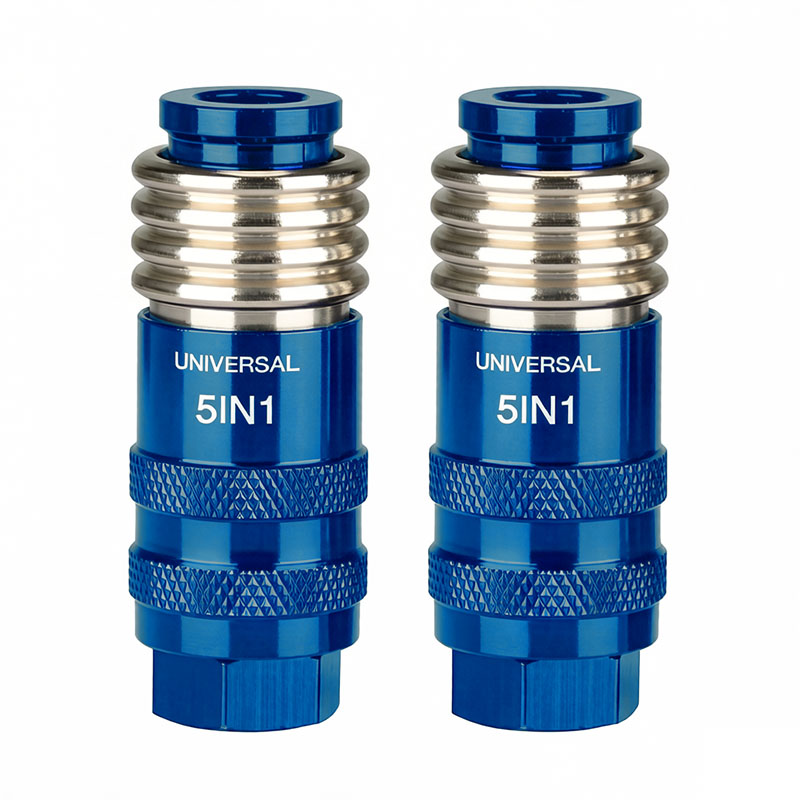

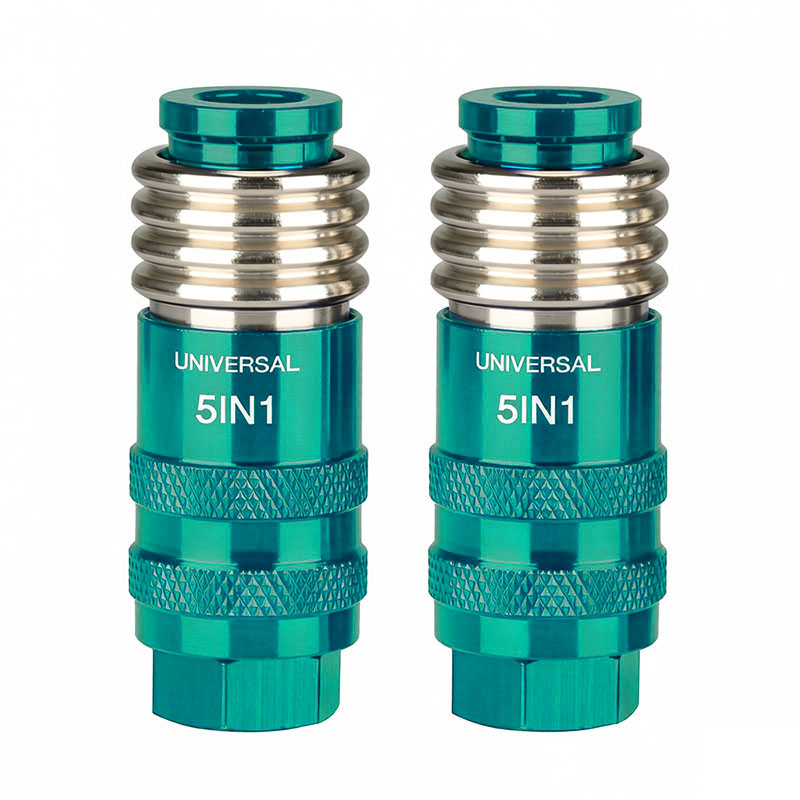

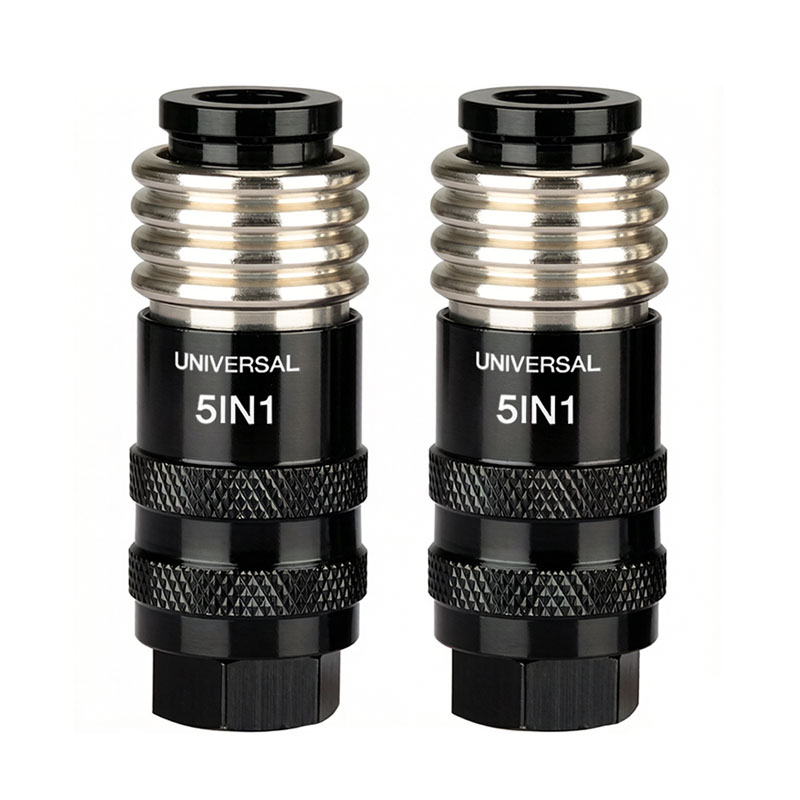

SC05-2SF
GREATLAND
HS CODE: 8481804090
Product Description
Technical data
| Nominal flow rate* acc. to ISO 635 | 1133 L/min |
| Flow medium | Compressed air, pre-filtered with 40 μm |
| Max. operating pressure(p1) | 16 Bar / 230 Psi |
| Operating temperature | -20°C up to +100°C |
| Mounting position/flow direction | Preferably coupling before plug in flow direction/any |
| Material coupling/plug | 6061 Aluminum alloy/Nickel-plated steel |
| Material seals | NBR |
| Material spring | Stainless steel / Spring steel |
| Material balls | Stainless steel |

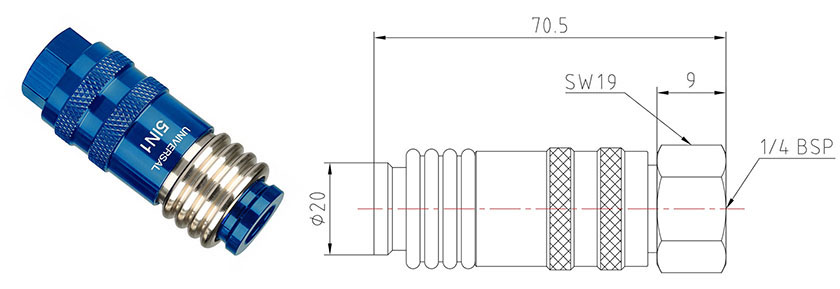

| ITEM | L(mm) | ФD(mm) | L1(mm) | SW(mm) | MT |
| SC05-2SF-1/4" | 70.5 | 20 | 9 | 19 | 1/4"BSP |
| SC05-3SF-3/8" | 76.5 | 20 | 15 | 21 | 3/8"BSP |
| SC05-4SF-1/2" | 79.5 | 20 | 18 | 24 | 1/2"BSP |
Feature:

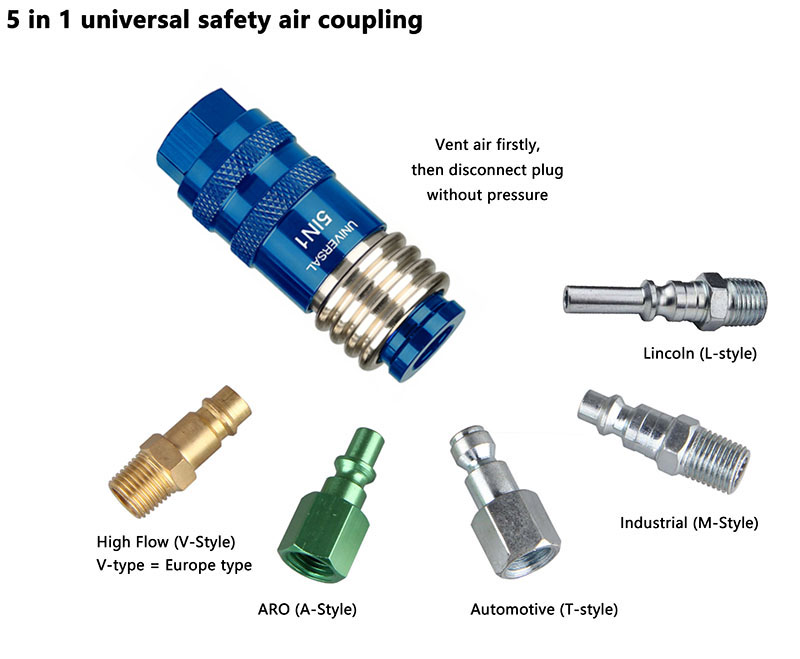

1. 5 In 1 Universal Industrial Safety Exhaust couplers are designed to safely bleed off air pressure before releasing the connector.
2. The safety exhaust feature allows for safe disconnection, eliminating potentially dangerous hose whip.
3. The coupler remains connected to the plug while pressurized air is safely bled off.
4. Constructed of heavy-duty steel which is ideal for applications requiring a durable and long lasting pneumatic coupler.
